Locator Reference Guide Checklist

Utility Locating Quick Reference Guide

• 1. Arrival & Safety
  • Check in & review site maps
  • Wear PPE (vest, hard hat, gloves, boots, glasses)
  • Walk job site & identify hazards
  • Plan which utilities need locating
• 2. Equipment Setup
  • Inspect & power on RD7200/RD8200
  • Run self-test, check batteries
  • Select correct mode: Active / Passive / Induction
• 3. Hookup Steps
  • Preferred order: Direct Connect → Clamp → Induction
  • Red lead → Utility (metal/tracer wire)
  • Black lead → Ground stake (away from other utilities)
  • Start with low frequency, increase only if needed

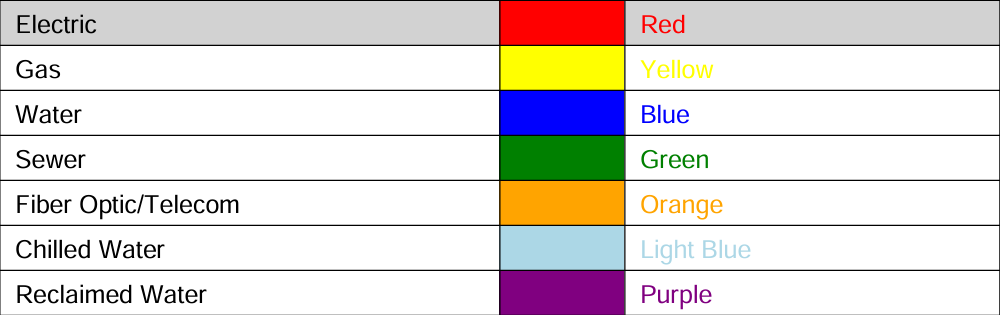

4. Utility Locating Colors:

5. Locating & Marking
1. Sweep in both directions
2. Verify signal strength
3. Mark path: Flags at turns/crossings, Paint dashes + arrows
4. Depth check at critical points

• 6. Packing Up
  • Disconnect transmitter & ground
  • Clean & inspect equipment
  • Collect flags/cones/safety gear
  • Record locate (photos/Notes/Comment to Call Center)
  • Report job complete

• Best Practices
  • Always confirm with 2+ modes when possible
  • Avoid hooking near transformers/multiple parallel lines
  • Double-check crossings
  • Keep marks consistent & visible
